How to Build a Webex Teams Chatbot

By now I’m sure most of you would have heard the terms ChatOps and Chatbots.

For many of you these terms may be new, and if not you may be wondering how to get started. In this article, we will answer these questions and also get hands-on with building a Chatbot within the collaboration platform Webex Teams.

ChatOps, a term originally coined by the folks at Github, is all about conversation-driven operations.¹ This is achieved via a Chatbot that is integrated with your chat platform (such as Webex Teams, Microsoft Teams or Slack) and configured to execute various actions upon commands or actions submitted by the user.

By bringing your tools into your conversations and using a Chatbot modified to work with key plugins and scripts, teams can automate tasks, collaborate more, and to work faster and more efficiently.²

When it comes to Chatbots, there are two main types – text-based and menu/button-based:

• Text-based – Bots are created to accept a text command, execute a command and then return the result back to the user. For the scope of this article, this is the type of Chatbot we will be building.

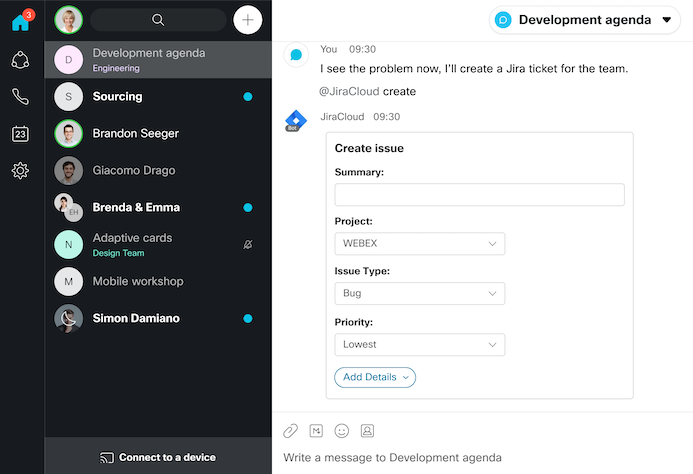

• Menu/button-based – The latest Chatbots now provide dialog inputs and other interactive elements as opposed to text commands.³ With Webex Teams, this type of Chatbot is built with Buttons and Cards (example below), based upon the Microsoft Adaptive Cards specification. Microsoft Teams also utilizes Adaptive Cards, whereas Slack provides Block Kit.

Image source: https://developer.webex.com/docs/api/guides/cards

Pull vs Webhooks

There are 2 main methods for getting the data and/or actions from the user to the Chatbot for processing – pull and webhooks.

• Pull – The Chatbot continuously pulls data from the chat platform, for example, messages. An example of a pull-based bot can be found in this previous post on building a basic Slack bot with Python – https://networktocode.com/blog/Basic-Slack-use-with-Python/.
• Webhooks – Instead of polling the chat platform, a webhook is only sent to the bot in the event of a given condition, for example, a new message is created, or a form submission. This method prevents continuous polling and therefore can reduce the resource overhead to both the chat API endpoints and Chatbot.

Chatbot Demo Overview

At a very high level, our user will enter an IP address and netmask within the Webex Teams client (be it the mobile app, web browser, or desktop app). Our Chatbot will then perform an ipcalc against the IP and subnet, then return the result to the user.

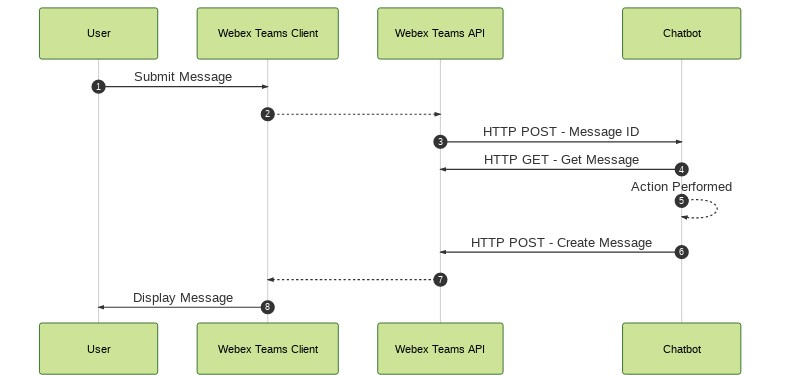

Workflow

Let’s step through the order of operations for our Chatbot.

1. The user submits a message within Webex Teams.
2. Webex Teams then processes this submission.
3. This submission triggers a webhook, an HTTP POST to our Chatbot endpoint, containing a message ID.
4. The Chatbot will then issue an API call out to the Webex Teams API to collect the message details using the previous message ID.
5. Using the message details, our Chatbot will then perform the required action. In our case taking the IP/Subnet and running ipcalc.
6. A message is then created containing the results of ipcalc.
7. The message is displayed to the user via the Webex Teams client.

Webex Teams Configuration

To begin, we perform the required configuration within Webex teams. This consists of creating our bot, adding our bot to our Webex Teams space, along with creating a message webhook.

Create Bot

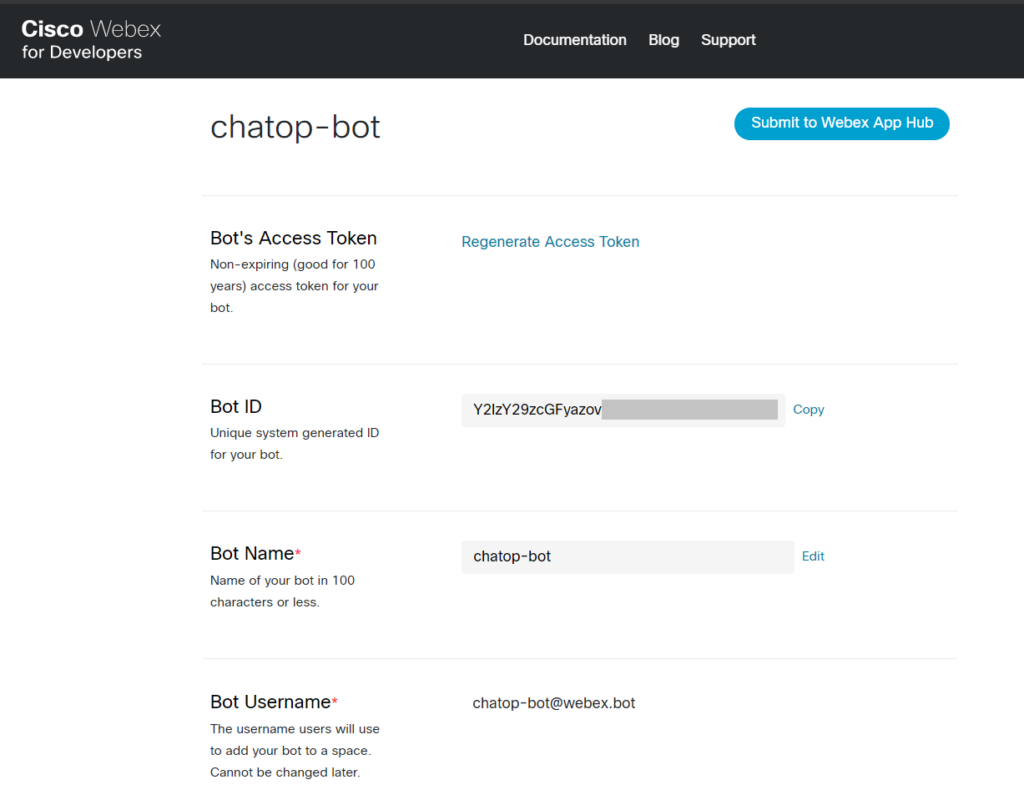

First of all, we need to create our bot. This is done on the Webex platform via the URL https://developer.webex.com/my-apps.

Once created, you will be provided with two important pieces of information, the Bot Access Token and the Bot ID which we will use in later steps.

Note: If you do not have a Webex Teams account, you can register for a free trial over at https://www.webex.com/team-collaboration.html.

Add Bot to Space

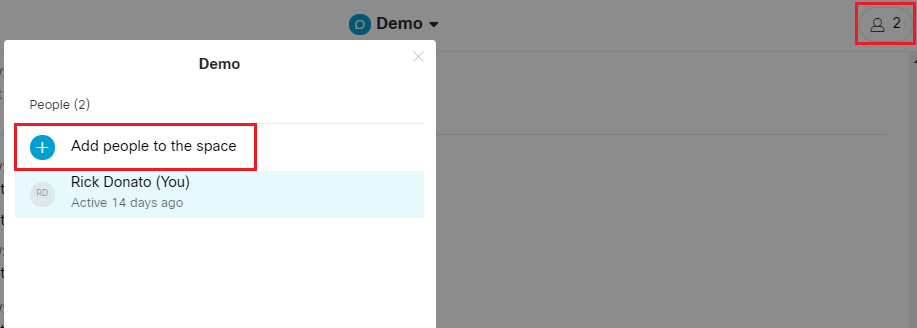

Next, add your new bot within your Webex Teams space. Like so,

Create Webhook

We will now turn our attention to creating our webhook. Webex Team webhooks are created via its REST API. There are many ways to send an API request, such as curl or via the Python requests module. However, we will use Postman.

Postman is an API (application programming interface) development tool that helps to build, test, and modify APIs.⁴

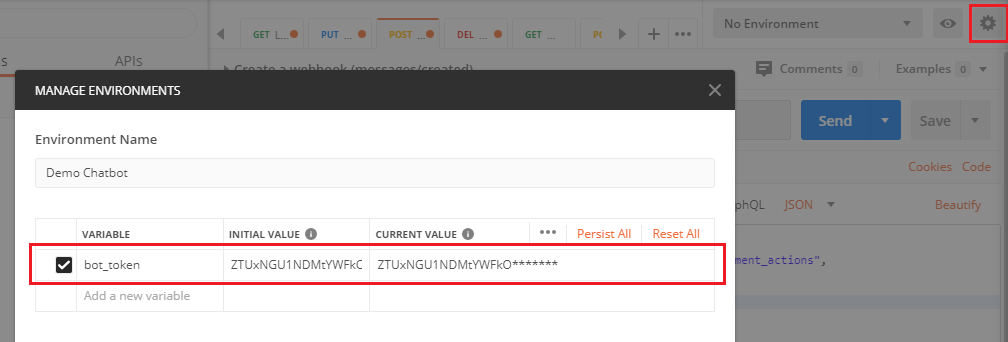

The benefit of using Postman in this scenario is that we can utilize the prebuilt Webex collection, located at https://github.com/CiscoDevNet/postman-webex. This will save you time, and also give you a bunch of other API requests should you want to explore further. Once you have imported the collection into Postman you will need to assign the previously obtained Bot Access Token as the variable bot_token, within a Postman environment (as shown below). The main benefit of doing this is that it will prevent us from needing to add our Bot Access Token to each API call we make.

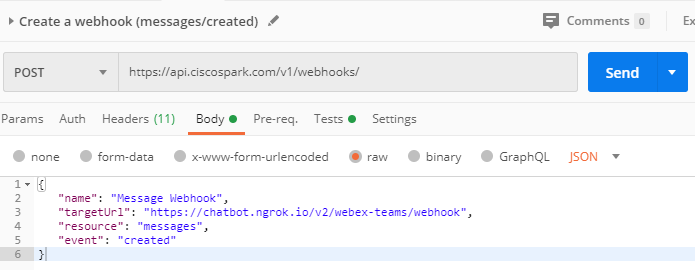

We can now create our webhook by locating the Create a webhook (messages/created) request inside the Webex Teams API v1 collection. Within the body add the details as shown below. To summarize the body shown, it specifies that when a message is created send a webhook to the targetUrl. Once created, click send.

Building the Chatbot

With Webex configured, let’s create our bot! To provide an API endpoint that the Webex Teams API can send the webhook to, we will build our Chatbot using the web framework Flask.

Clone Repo

First clone the repo, as shown below:

git clone git@github.com:networktocode/chatbot-demo.git

Create Virtual Environment

Next, create a virtual environment. We then activate (enter) the virtual environment and install our Python dependencies that our bot will require.

cd chatbot-demo
virtualenv --python=/usr/bin/python3 venv
source venv/bin/activate
pip install -r requirements.txt

Create Environment Variable File

We will define all of our environment variables that our bot will require within .env. To create this file, run the command cp .env-example .env and then add the Bot access token and username obtained previously. An example of .env-example is shown below.

WEBEX_TEAMS_ACCESS_TOKEN="########"
WEBEX_BOT_USERNAME="########"
NGROK_TOKEN="########"

Setup Ngrok

Ngrok is a reverse proxy that creates a secure tunnel from a public endpoint to a locally running web service. ngrok captures and analyzes all traffic over the tunnel for later inspection and replay. ⁵

In other words, Ngrok allows us to create a public endpoint that Webex Teams can send the webhook to. This Ngrok public endpoint will then send the API call (webhook) over a secure tunnel to the localhost that is running our bot.

Note: This setup is only required for development purposes. Typically within a production based setup, the bot endpoint would be exposed publicly.

To download Ngrok go to https://dashboard.ngrok.com/get-started/setup. Once complete you will be provided with a Ngrok authentication token, which you will need to add to .env.

You can now run Ngrok via the following commands.

export $(cat .env | xargs)
/opt/ngrok authtoken ${NGROK_TOKEN_ENV}
/opt/ngrok http -subdomain=chatbot 5030

Note: The above is based upon you installing Ngrok within the /opt folder.

Install System Dependencies

Our bot will be using ipcalc to perform the subnetting calculations, therefore we will need to install it like so:

apt-get install ipcalc

Execute Chatbot

Before we execute our bot, there are a few things worth mentioning about the code.

• A single Flask view is created to respond to HTTP POST requests against “webex-teams/webhook`.
• The Webex Teams SDK is used to simplify the process of performing the necessary API requests (steps 4 and 6 in the previous workflow diagram).
• The line condition if request.json["data"]["personEmail"] == os.getenv("WEBEX_BOT_USERNAME") ensures that our bot does not process messages originating from itself. This is a loop prevention mechanism. `

Let’s now execute our bot. Like so,

python chatbot/webex_teams_bot.py

Test Bot

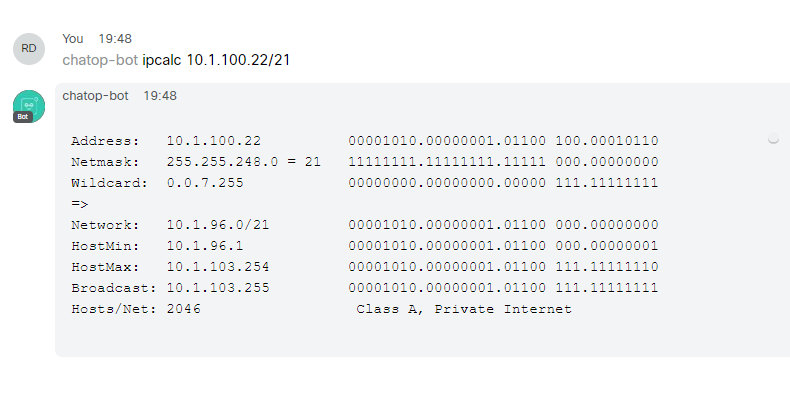

To test your new bot go into your Webex Teams space then mention your bot, followed by ipcalc and then the subnet address. Like so: @<your_bot_name> ipcalc <x.x.x.x>/cidr. Below shows an example:
