These days, most organizations heavily leverage YAML and JSON to store and organize all sorts of data. This is done in order to define variables, be provided as input for generating device configurations, define inventory, and for many other use cases. Both YAML and JSON are very popular because both languages are very flexible and are easy to use. It is relatively easy for users who have little to no experience working with structured data (as well as for very experienced programmers) to use JSON and YAML because the formats do not require users to define a schema in order to define data.
As the use of structured data increases, the flexibility provided because these languages don’t require data to adhere to a schema create complexity and risk. If a user accidentally defines the data for ntp_servers
in two different structures (e.g. one is a list, and one is a dictionary), automation tooling must be written to handle the differences in inputs in some way. Often times, the automation tooling just bombs out with a cryptic message in such cases. This is because the tool consuming this data rightfully expects to have a contract with it, that the data will adhere to a clearly defined form and thus the tool can interact with the data in a standard way. It is for this reason that APIs, when updated, should never change the format in which they provide data unless there is some way to delineate the new format (e.g. an API version increment). By ensuring data is defined in a standard way, complexity and risk can be mitigated.
With structured data languages like YAML and JSON which do not inherently define a schema (contract) for the data they define, a schema definition language can be used to provide this contract, thereby mitigating complexity and risk. Schema definition languages come with their own added maintenance though as the burden of writing the logic to ensure structured data is schema valid falls on the user. The user doesn’t just need to maintain structured data and schemas, they also have to build and maintain the tooling that checks if data is schema valid. To allow users to simply write schemas and structured data and worry less about writing and maintaining the code that bolts them together, Network to Code has developed a tool called Schema Enforcer. Today we are happy to announce that we are making Schema Enforcer available to the community.
Check it out on Github!
Schema Enforcer is a framework for allowing users to define schemas for their structured data and assert that the defined structured data adheres to their schemas. This structured data can (currently) come in the the form of a data file in JSON or YAML format, or an Ansible inventory. The schema definition is defined by using the JSONSchema language in YAML or JSON format.
If you’re familiar with JSONSchema already, you may be thinking “wait, doesn’t JSONSchema do all of this?”. JSONSchema does allow you to validate that structured data adheres to a schema definition, but it requires for you to write your own code to interact with and manage the data’s adherence to defined schema. Schema Enforcer is meant to provide a wrapper which makes it easy for users to manage structured data without needing to write their own code to check their structured data for adherence to a schema. It provides the following advantages over just using JSONSchema:
1
in the event that data is not adherent to schema. This makes it fit for use in a CI pipeline along-side linters and unit testsI’ve created the following directories and files in a repository called new_example
.

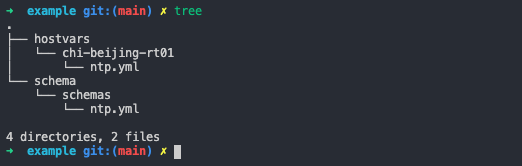

The directory includes
chi-beijing-rt01
inside of the file at hostvars/chi-beijing-rt01/ntp.yml
schema/schemas/ntp.yml
If we examine the file at hostvars/chi-being-rt01/ntp.yml
we can see the following data defined in YAML format.
# jsonschema: schemas/ntp
---
ntp_servers:
- address: 192.2.0.1
- address: 192.2.0.2
Note the comment # jsonschema: schemas/ntp
at the top of the YAML file. This comment is used to declare the schema that the data in this file should be checked for adherence to, as well as the language being used to define the schema (JSONSchema here). Multiple schemas can be declared by comma separating them in the comment. For instance, the comment # jsonschema: schemas/ntp,schemas/syslog
would declare that the data should be checked for adherence to two schema, one schema with the ID schemas/ntp
and another with the id schemas/syslog

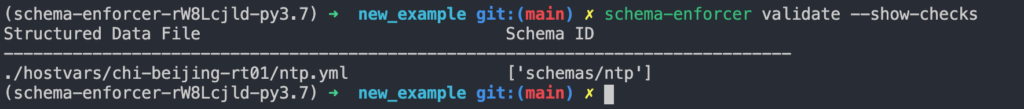

. We can validate that this mapping is being inferred correctly by running the command schema-enforcer validate --show-checks
The
--show-checks
flag shows each data file along with a list of every schema IDs it will be checked for adherence to.
Other mechanisms for mapping data files to schemas against which they should be validated. See docs/mapping_schemas.md in the Schema Enforcer git repository. for more details.
YAML supports the addition of comments using an octothorp. JSON does not support the addition of comments. To this end, only data defined in YAML format can declare the schema to which it should adhere with a comment. Another mechanism for mapping needs to be used if your data is defined in JSON format.
If we examine the file at schema/schemas/ntp.yml
we can see the following schema definition. This is written in the JSONSchema language and formatted in YAML.
---
$schema: "http://json-schema.org/draft-07/schema#"
$id: "schemas/ntp"
description: "NTP Configuration schema."
type: "object"
properties:
ntp_servers:
type: "array"
items:
type: "object"
properties:
name:
type: "string"
address:
type: "string"
format: "ipv4"
vrf:
type: "string"
required:
- "address"
uniqueItems: true
additionalProperties: false
required:
- "ntp_servers"
The schema definition above is used to ensure that:
ntp_servers
property is of type hash/dictionary (object in JSONSchema parlance)ntp_servers
name
, address
and vrf
address
is required, name
and vrf
can optionally be defined, but it is not necessary to define them.address
must be of type “string” and it must be a valid IP addressname
must be of type “string” if it is definedvrf
must be of type “string” if it is definedHere is an example of the structured data being checked for adherence to the schema definition.

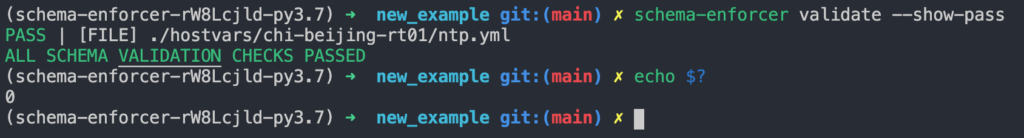

We can see that when schema-enforcer
runs, it shows that all files containing structured data are schema valid. Also note that Schema Enforcer exits with a code of 0.
What happens if we modify the data such that the first ntp server defined has a value of the boolean true
and add a syslog_servers
dictionary/hash type object at the top level of the YAML file.
# jsonschema: schemas/ntp
---
ntp_servers:
- address: true
- address: 192.2.0.2
syslog_servers:
- address: 192.0.5.3
We can see that two errors are flagged. The first informs us that the first element in the array which is the value of the ntp_servers
top level key is a boolean and a string was expected. The second informs us that the additional top level property syslog_servers
is a property that is additional to (is not specified in) the properties defined by the schema, and that additional properties are not allowed per the schema definition. Note that schema-enforcer
exits with a code of 1 indicating a failure. If Schema Enforcer were to be used before structured data is ingested into automation tools as part of a pipeline, the pipeline would never have the automation tools consume the malformed data.

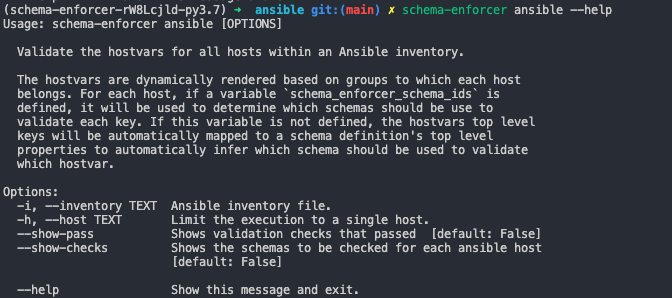

Schema Enforcer supports validating that variables defined in an Ansible inventory adhere to a schema definition (or multiple schema definitions).
To do this, Schema Enforcer first constructs a dictionary containing key/value pairs for each attribute defined in the inventory. It does this by flattening the varibles from the groups the host is a part of. After doing this, schema-enforcer
maps which schemas it should use to validate the hosts variables in one of two ways:
schema_enforcer_schema_ids
attribute (defined at the host or group level).That may have been gibberish on first pass, but the examples in the following sections will hopefully make things clearer.
In the following example, we have an inventory file which defines three groups, nyc
, spine
, and leaf
. spine
and leaf
are children of nyc
.
[nyc:children]
spine
leaf
[spine]
spine1
spine2
[leaf]
leaf1
leaf2
The group spine.yaml
has two top level keys; dns_servers
and interfaces
.
cat group_vars/spine.yaml
---
dns_servers:
- address: true
- address: "10.2.2.2"
interfaces:
swp1:
role: "uplink"
swp2:
role: "uplink"
schema_enforcer_schema_ids:
- "schemas/dns_servers"
- "schemas/interfaces"
Note the schema_enforcer_schema_ids
variable. This declaratively tells Schema Enforcer which schemas to use when running tests to ensure that the Ansible host vars for every host in the spine
group are schema valid.
Here is the interfaces schema which is declared above:
bash$ cat schema/schemas/interfaces.yml
---
$schema: "http://json-schema.org/draft-07/schema#"
$id: "schemas/interfaces"
description: "Interfaces configuration schema."
type: "object"
properties:
interfaces:
type: "object"
patternProperties:
^swp.*$:
properties:
type:
type: "string"
description:
type: "string"
role:
type: "string"
Note that the $id
property is what is being declared by the schema_enforcer_schema_ids
variable.

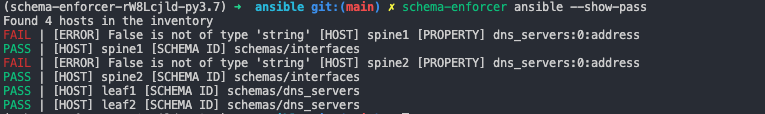

When we run the schema-enforcer ansible
command with the --show-pass
flag, we can see that the spine1
and spine2
’s defined dns_servers
attribute did not adhere to schema.
By default,
schema-enforcer
prints a “FAIL” message to stdout for each object in the data file which does not adhere to schema. If no objects fail to adhere to schema definitions, a single line is printed indicating that all data files are schema valid. The--show-pass
flag modifies this behavior such that, in addition the the default behavior, a line is printed to stdout for every file that is schema valid indicating it passed the schema adherence check.
In looking at the group_vars/spine.yaml
group above. This is because the first dns server in the list which is the value of dns_servers
has a value of the boolean true
.
bash$ cat schema/schemas/dns.yml
---
$schema: "http://json-schema.org/draft-07/schema#"
$id: "schemas/dns_servers"
description: "DNS Server Configuration schema."
type: "object"
properties:
dns_servers:
type: "array"
items:
type: "object"
properties:
name:
type: "string"
address:
type: "string"
format: "ipv4"
vrf:
type: "string"
required:
- "address"
uniqueItems: true
required:
- "dns_servers"
In looking at the schema for dns servers, we see that DNS servers address field must be of type string
and format ipv4
(e.g. IPv4 address). Because the first element in the list of DNS servers has an address
of the boolean true
it is not schema valid.
Similar to the way that schema-enforcer validate --show-checks
can be used to show which data files will be checked by which schema definitions, the schema-enforcer ansible --show-checks
command can be used to show which Ansible hosts will be checked for adherence to which schema IDs.

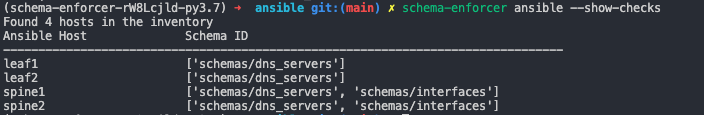

From the execution of the command, we can see that 4 hosts were loaded from inventory. This is just what we expect from our earlier examination of the .ini
file which defines Ansible inventory. We just saw how spine1
and spine2
were checked for adherence to both the schemas/dns_servers
and schemas/interfaces
schema definitions, and how the schema_enforcer_schema_ids
var was configured to declare that devices belonging to the spine
group should adhere to those schemas. Lets now examine the leaf
group a little more closely.
cat ansible/group_vars/leaf.yml
---
dns_servers:
- address: "10.1.1.1"
- address: "10.2.2.2"
In the leaf.yml
file, no schema_enforcer_schema_ids
var is configured. There is also no individual data defined at the host level for leaf1
and leaf2
which belong to the leaf
group. This brings up the question, how does schema-enforcer
know to check the leaf switches for adherence to the schemas/dns_servers
schema definition?
The default behavior of schema-enforcer
is to map the top level property in a schema definition to vars associated with each Ansible host that have the same name.
bash$ cat schema/schemas/dns.yml
---
$schema: "http://json-schema.org/draft-07/schema#"
$id: "schemas/dns_servers"
description: "DNS Server Configuration schema."
type: "object"
properties:
dns_servers:
type: "array"
items:
type: "object"
properties:
name:
type: "string"
address:
type: "string"
format: "ipv4"
vrf:
type: "string"
required:
- "address"
uniqueItems: true
required:
- "dns_servers"
Because the property defined in the schema definition above is dns_servers
, the matching Ansible host var dns_servers
will be checked for adherence against it.
In fact, if we make the following changes to the leaf
group var definition then run schema-enforcer --show-checks
, we can see that devices belonging to the leaf
group are now slated to be checked for adherence to both the schemas/dns_servers
and schemas/interfaces
schema definitions.
cat ansible/group_vars/leaf.yml
---
dns_servers:
- address: "10.1.1.1"
- address: "10.2.2.2"
interfaces:
swp01:
role: uplink
O.K. so you’ve defined schemas for your data, now what? Here are a couple of use cases for Schema Enforcer we’ve found to be “juice worth the squeeze.”
1) Use Schema Enforcer in your CI system to validate defined structured data before merging code. Virtually all git version control systems (GitHub, GitLab…etc) allow the ability to configure tests which must pass before code can be merged from a feature branch into the code base. Schema Enforcer can be turned on along side your other tests (unit tests, linters…etc). If your data is not schema valid, the exact reason why the data is not schema valid will be printed to the output of the CI system when the tool is run and the tool will exit with a code of 1 causing the CI system to register a failure. When the CI system sees a failure, it will not allow the merge of data which is not adherent to schema.
2) Use it in a pipeline. Say you have YAML structured data which defines the configuration for network devices. You can run schema enforcer as part of a pipeline and run it before automation tooling (Ansible, Python…etc) consumes this data in order to render configurations for devices. If the data isn’t schema valid, the pipeline will fail before rendering configurations and pushing them to devices (or exploding with a stack trace that takes you 30 minutes and lots of googling to troubleshoot).
3) Run it after your tooling generates structured data and prints it to a file. In this case, Schema Enforcer can act as a sanity check to ensure that your tooling is dumping correctly structured output.
We plan to add the support for the following features to Schema Enforcer in the future:
Have a use case for Schema Enforcer? Try it out and let us know what you think! Do you want the ability to write schema definitions in YANG or have another cool idea? We are iterating on the tool and we are open to feedback!
-Phillip Simonds
