With many people being asked to work from home, we have heard several customers looking to enhance the visibiility and monitoring of their VPN infrastructure. In this post I will show you how you can quickly collect information from your Cisco ASA firewall leveraging Netmiko, NTC-Templates (TextFSM), combined with Telegraf/Prometheus/Grafana. The approach would work on other network devices, not just Cisco ASAs. Considering the recent demand for ASA information, we will use this as an example.

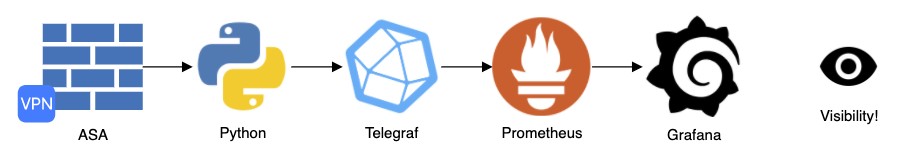

Here is what the data flow will look like:
An alternative to creating this Python script, you could have looked at using the Telegraf SNMP plugin as well. An SNMP query would be quicker than using SSH and getting data if you want basic counts. In this you will see that you can get custom metrics into a monitoring solution without having to use only SNMP.
If executing just the Python script without being executed by Telegraf, this is what you would see:
$ python3 asa_anyconnect_to_telegraf.py --host 10.250.0.63
asa connected_users=1i,anyconnect_licenses=2i
This data will then get transformed by Telegraf into an output that is usable by Prometheus. It is possible to remove the requirement for Telegraf and have Python create the Prometheus Metrics. We wanted to keep the Python execution as simple as possible. To use the prometheus_client library check out their Github page.
In this post we have the following components being used:
The Python script below will have the following requirements set up before hand:
cd ~ and git clone https://github.com/networktocode/ntc-templates.gitNET_TEXTFSM=/path/to/ntc-templates/templates/The specific template is the newer templatefor cisco asa show vpn-sessiondb anyconnect introduced March 18, 2020
There are two functions used in this quick script:
"""
(c) 2020 Network to Code
Licensed under the Apache License, Version 2.0 (the "License").
You may not use this file except in compliance with the License.
You may obtain a copy of the License at
http: // www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
Python application to gather metrics from Cisco ASA firewall and export them as a metric for Telegraf
"""
from itertools import count
import os
import sys
import re
import click
from netmiko import ConnectHandler
def print_influx_metrics(data):
"""
The print_influx_metrics function takes the data collected in a dictionary format and prints out
each of the necesary components on a single line, which matches the Influx data format.
Args:
data (dictionary): Dictionary of the results to print out for influx
"""
data_string = ""
cnt = count()
for measure, value in data.items():
if next(cnt) > 0:
data_string += ","
data_string += f"{measure}={value}i"
print(f"asa {data_string}")
return True
def get_anyconnect_license_count(version_output):
"""
Searches through the `show version` output to find all instances of the license and gets the
output into integers to get a license count.
Since there could be multiple ASAs in a cluster or HA pair, it is necessary to gather multiple data
points for the license count that the ASAs are licensed for. This function uses regex to find all of
the instances and returns the total count based on the `show version` command output.
Args:
version_output (String): Output from Cisco ASA `show version`
"""
pattern = r"AnyConnect\s+Premium\s+Peers\s+:\s+(\d+)"
re_list = re.findall(pattern, version_output)
total_licenses = 0
for license_count in re_list:
total_licenses += int(license_count)
return total_licenses
# Add parsers for output of data types
@click.command()
@click.option("--host", required=True, help="Required - Host to connect to")
def main(host):
"""
Main code execution
"""
# Get ASA connection Information
try:
username = os.environ["ASA_USER"]
password = os.environ["ASA_PASSWORD"]
secret = os.getenv("ASA_SECRET", os.environ["ASA_PASSWORD"])
except KeyError:
print("Unable to find Username or Password in environment variables")
print("Please verify that ASA_USER and ASA_PASSWORD are set")
sys.exit(1)
# Setup connection information and connect to host
cisco_asa_device = {
"host": host,
"username": username,
"password": password,
"secret": secret,
"device_type": "cisco_asa",
}
net_conn = ConnectHandler(**cisco_asa_device)
# Get command output for data collection
command = "show vpn-sessiondb anyconnect"
command_output = net_conn.send_command(command, use_textfsm=True)
# Check for no connected users
if "INFO: There are presently no active sessions" in command_output:
command_output = []
# Get output of "show version"
version_output = net_conn.send_command("show version")
# Set data variable for output to Influx format
data = {"connected_users": len(command_output), "anyconnect_licenses": get_anyconnect_license_count(version_output)}
# Print out the metrics to standard out to be picked up by Telegraf
print_influx_metrics(data)
if __name__ == "__main__":
main()
Now that the data is being output via the stdout of the script, you will need to have an application read this data and transform it. This could be done in other ways as well, but Telegraf has this function built in already.
Telegraf will be setup to execute the Python script every minute. Then the output will be transformed by defining the output.
The configuration for this example is as follows:
# Globally set tags that shuld be set to meaningful tags for searching inside of a TSDB
[agent]
hostname = "demo"
[global_tags]
device = "10.250.0.63"
region = "midwest"
[[inputs.exec]]
## Interval is how often the execution should occur, here every 1 min (60 seconds)
interval = "60s"
# Commands to be executed in list format
# To execute against multiple hosts, add multiple entries within the commands
commands = [
"python3 asa_anyconnect_to_telegraf.py --host 10.250.0.63"
]
## Timeout for each command to complete.
# Tests in lab environment next to the device with local authentication has been 6 seconds
timeout = "15s"
## Measurement name suffix (for separating different commands)
name_suffix = "_parsed"
## Data format to consume.
## Each data format has its own unique set of configuration options, read
## More about them here:
## https://github.com/influxdata/telegraf/blob/master/docs/DATA_FORMATS_INPUT.md
data_format = "influx"
# Output to Prometheus Metrics format
# Define the listen port for which TCP port the web server will be listening on. Metrics will be
# available at "http://localhost:9222/metrics" in this instance.
# There are two versions of metrics and if `metric_version` is omitted then version 1 is used
[[outputs.prometheus_client]]
listen = ":9222"
metric_version = 2
Here is what the metrics will look like when exposed, without the default Telegraf information metrics.
# HELP asa_parsed_anyconnect_licenses Telegraf collected metric
# TYPE asa_parsed_anyconnect_licenses untyped
asa_parsed_anyconnect_licenses{device="10.250.0.63",host="demo",region="midwest"} 2
# HELP asa_parsed_connected_users Telegraf collected metric
# TYPE asa_parsed_connected_users untyped
asa_parsed_connected_users{device="10.250.0.63",host="demo",region="midwest"} 1
There are two metrics of anyconnect_licenses and connected_users that will get scraped. There are a total of 2 Anyconnect licenses available on this firewall with a single user connected. This can now get scraped by the Prometheus configuration and give insight to your ASA Anyconnect environment.
There are several of options for installing a Prometheus TSDB (Time Series DataBase)including:
To get more details on installation options take a look at the Prometheus Github page.
Once installed you can navigate to the Prometheus API query page by going to http://<prometheus_host>:9090. You will then be presented with a search bar. This is where you can start a query for your metric that you wish to graph, such as start typing asa. Prometheus will help with an autocomplete set of options in the search bar. Once you have selected what you wish to query you can select Execute. This will give you a value at this point. To see what the query looks like over time you can select Graph next to the world console to give you a graph over time. Grafana will then use the same query language to add a graph.
Once up and running, you add your Telegraf host to the scraping configuration and Prometheus will start to scrape the HTML page provided and add the associated metrics into its TSDB.
A good video tutorial for getting started with Prometheus queries with network equipment can be found on YouTube from NANOG 77
Grafana is the dashboarding component of choice in the open source community. Grafana is able to use several sources to create graphs including modern TSDBs of InfluxDB and Prometheus. With the latest release, Grafana can even use Google Sheets as a datasource.
As you get going with Grafana there are pre-built dashboards available for download.
TYou will want to download Grafana to get started. There are several installation methods available on their download page including options for:
The Prometheus website has an article that is helpful for getting started with your own Prometheus dashboards.
If the video just above this link does not show up, you can see the video on the Network to Code YouTube.
In the next post you can see how to monitor websites and DNS queries will include how to alert using this technology stack.
-Josh
