While teaching a Ansible Network Automation course, one day a student asked if there was a way to visualize Ansible playbooks. My usual response is to ensure they are aware of the --list-tasks command line flag, which will show a playbook’s plays and tasks that belong to those plays in a nicely formatted fashion.
Something else that is good to be aware of that came recommended by another student is a way of viewing a similar type of information, but displayed differently, and more visually pleasing, is called Ansible Playbook Grapher.
Note:
--list-taskscomes already built-in with Ansible andAnsible Playbook Grapherhas only been tested with Ansible >= 2.7 and needs to be installed with it’s dependencies. Click here! to view instructions.
Let’s look at a few examples on first using --list-tasks and second using Ansible Playbook Grapher to see what each offer.
This first example is pretty basic. There are two Ansible plays–three tasks belong to Play 1 and a single task on Play 2.
ntc@jump-host:ansible$ ansible-playbook build_push.yml --list-tasks
playbook: build_push.yml
play #1 (all): BUILD PROCESS TAGS: [BUILD]
tasks:
ENSURE DIRECTORY EXISTS PER DEVICE (AND PARTIALS SUB-DIR) TAGS: [BUILD]
BUILD NETWORK CONFIGURATIONS TAGS: [BUILD]
ASSEMBLE PARTIAL CONFIGURATIONS PER DEVICE INTO SINGLE CONFIG FILE TAGS: [BUILD]
play #2 (all): DEPLOY CONFIGURATIONS USING NAPALM TAGS: [DEPLOY]
tasks:
DEPLOY MERGE TAGS: [DEPLOY]
Note: The information below is a break down of the output from running the CLI command, if you want to know more about the output.
Right after running the command ansible-playbook build_push.yml --list-tasks in the output it shows:
playbook: build_push.yml <–Playbook nameplay #1 (all) <– What devices are being targeted in play #1BUILD PROCESS <– Name of PlayTAGS: [BUILD] <– Used when running playbook using --tags=BUILDENSURE DIRECTORY EXISTS... <– Task nameTAGS: [BUILD] <– Part of the same tag defined earlierBelow is another example but with more plays and tasks.
ntc@jump-host:ansible$ ansible-playbook lldp_neighbors.yml --list-tasks
playbook: lldp_neighbors.yml
playbook: lldp_neighbors.yml
play #1 (all): CREATE DIRECTORIES TAGS: [common]
tasks:
CREATE DIRECTORIES TAGS: [common]
CREATE JINJA FILES TAGS: [common]
play #2 (iosxe): GET LLDP NEIGHBORS - IOS TAGS: [ios]
tasks:
IOS LLDP NEIGHBORS TAGS: [ios]
DEBUG FACTS FOR IOS TAGS: [ios]
GENERATE REPORT FOR IOS TAGS: [ios]
play #3 (nxos): GET LLDP NEIGHBORS - NXOS TAGS: [nxos]
tasks:
NXOS LLDP NEIGHBORS TAGS: [nxos]
DEBUG FACTS FOR NXOS TAGS: [nxos]
GENERATE REPORT FOR NXOS TAGS: [nxos]
play #4 (eos): GET LLDP NEIGHBORS - EOS TAGS: [eos]
tasks:
EOS LLDP NEIGHBORS TAGS: [eos]
DEBUG FACTS FOR EOS TAGS: [eos]
GENERATE REPORT FOR EOS TAGS: [eos]
play #5 (vmx): GET LLDP NEIGHBORS - VMX TAGS: [vmx]
tasks:
VMX LLDP NEIGHBORS TAGS: [vmx]
DEBUG FACTS FOR VMX TAGS: [vmx]
GENERATE REPORT FOR VMX TAGS: [vmx]
As you can see, the output is clean and provides a view into all plays and tasks extracting all of the name values from the playbook.
This time I’m going to try out the same playbook but using Ansible Playbook Grapher.
ntc@jump-host:ansible$ ansible-playbook-grapher build_push.yml
Graphing Play #1: BUILD PROCESS (2) *****************************************************************************************************************************************
Done graphing Play #1: BUILD PROCESS (2) ************************************************************************************************************************************
Graphing Play #2: DEPLOY CONFIGURATIONS USING NAPALM (2) ********************************************************************************************************************
Done graphing Play #2: DEPLOY CONFIGURATIONS USING NAPALM (2) ***************************************************************************************************************
The graph has been exported to build_push.svg
Again, right after running the command ansible-playbook-grapher build_push.yml the output would look like:

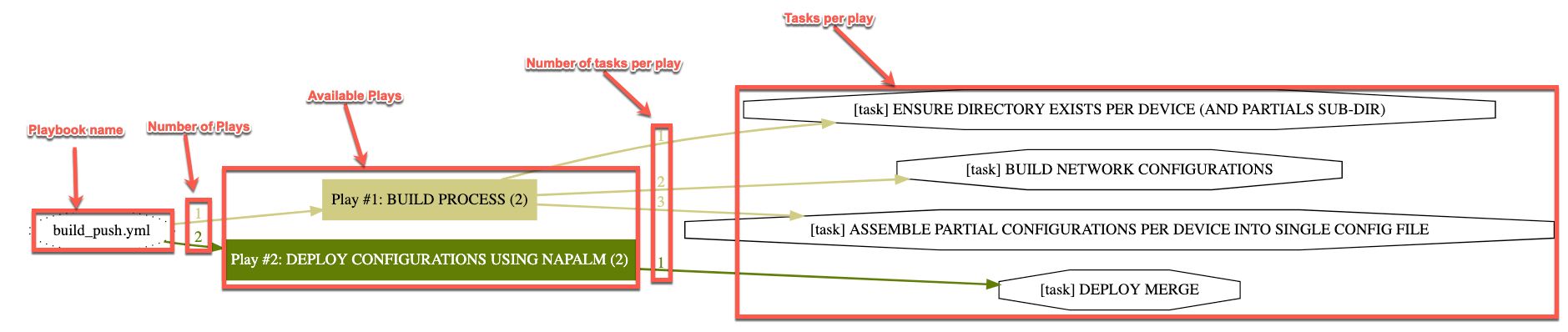

Graphing Play #1: BUILD PROCESS (2) <– Runs a Python file in the background based on the input given from the cliDone graphing Play #1: BUILD PROCESS (2) <– Finishes running the script and exports svg file locally.If you open up the generated file it should look like the following:
On OSX:
ntc@jump-host:ansible$ open -a "Google Chrome" <path-to-svg>
As we can see from the output in the image we have:
(build_push.yml)(2)("BUILD PROCESS", "DEPLOY CONFIGURATIONS" USING NAPALM TAGS)(Play_1 = 3, Play_2 = 1)(Play_1 = "ENSURE DIRECTORY EXISTS PER DEVICE", "BUILD NETWORK CONFIGURATIONS", "ASSEMBLE PARTIAL CONFIGURATIONS..." Play_2 = "DEPLOY MERGE")Second Example:

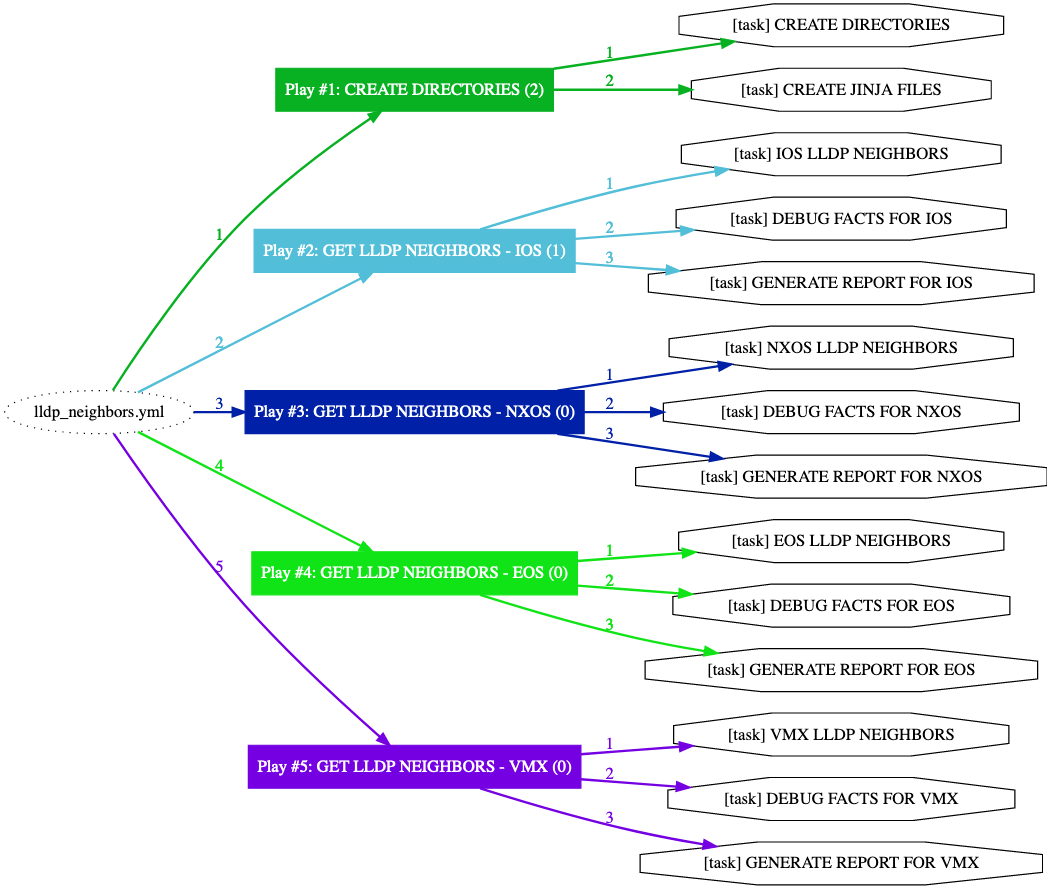

ntc@jump-host:ansible$ ansible-playbook-grapher lldp_neighbors.yml
Graphing Play #1: CREATE DIRECTORIES (12) *****************************************************************************************************************************************************
Done graphing Play #1: CREATE DIRECTORIES (12) ************************************************************************************************************************************************
Graphing Play #2: GET LLDP NEIGHBORS - IOS (3) ******************************************************************************************************************************************************
Done graphing Play #2: GET LLDP NEIGHBORS - IOS (3) *************************************************************************************************************************************************
Graphing Play #3: GET LLDP NEIGHBORS - NXOS (2) ******************************************************************************************************************************************************
Done graphing Play #3: GET LLDP NEIGHBORS - NXOS (2) *************************************************************************************************************************************************
Graphing Play #4: GET LLDP NEIGHBORS - EOS (4) ******************************************************************************************************************************************************
Done graphing Play #4: GET LLDP NEIGHBORS - EOS (4) *************************************************************************************************************************************************
Graphing Play #5: GET LLDP NEIGHBORS - VMX (3) ******************************************************************************************************************************************************
Done graphing Play #5: GET LLDP NEIGHBORS - VMX (3) *************************************************************************************************************************************************
The graph has been exported to lldp_neighbors.svg
As you can see, the Grapher tool does create some pretty nice graphs, but I did notice that it relies on the task names to build the arrows on what play they may belong too.
So if I change the names on some of the tasks and remove the specifics on what OS they belong to you will see a much different graph.
To be more specific I changed the task names from:
DEBUG FACTS FOR IOS
GENERATE REPORT FOR IOS
to this on each vendor:
DEBUG FACTS
GENERATE REPORT
The result of this change generated this type of output:
To view the source code and find other details like prerequisites and installation about this tool, find it at: https://github.com/haidaraM/ansible-playbook-grapher
-Hector
